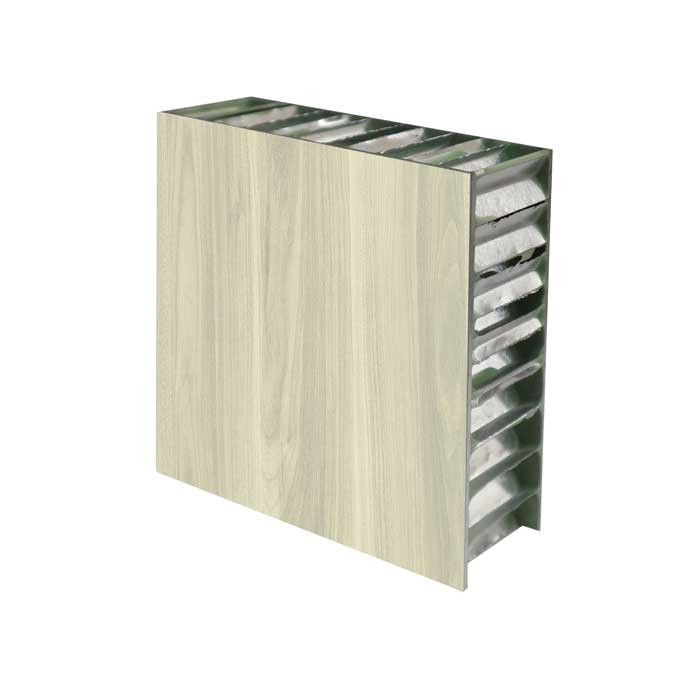

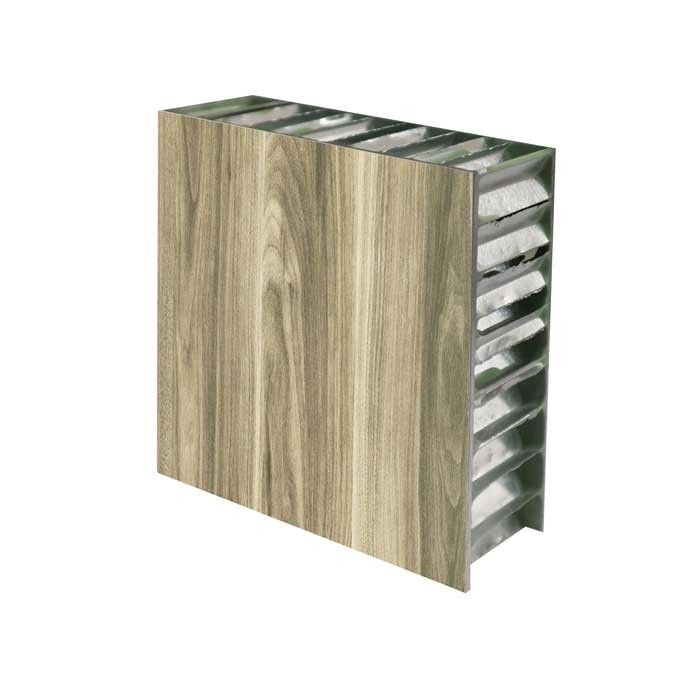

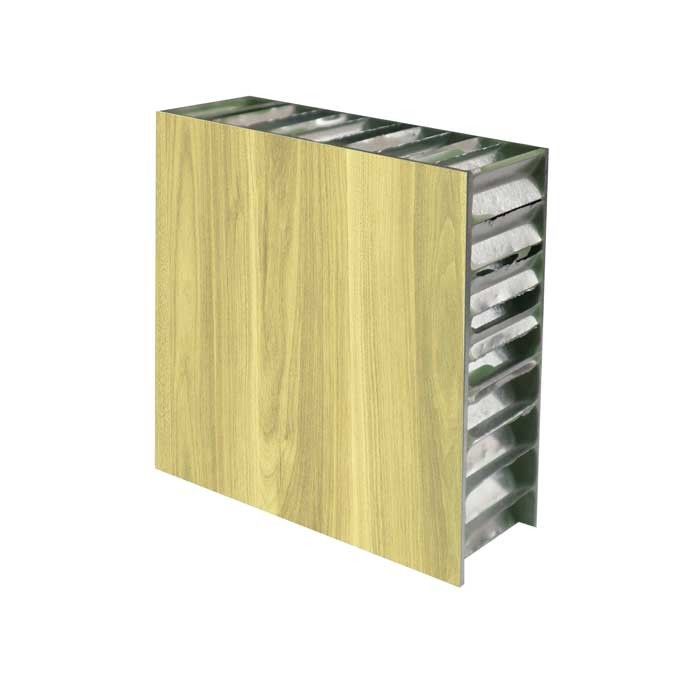

Wood Look Aluminum Honeycomb Sandwich Panel For Decorative Wall
Definition
Aluminum honeycomb panels are typically constructed of two face sheets and a core which are bonded together to form what is known as a sandwich panel. Edge enclosures can be incorporated in many panel designs along with internal hard-points and custom features. These panels exhibit performance characteristics far superior to solid structures. Through proper selection of core and face sheet materials, we can help you design a panel with extraordinary performance characteristics.
Structure
Aluminum Skin + Aluminum Honeycomb Core + Aluminum Skin
Size:
| Length | Upto 10m |
| Width | Upto 2200mm |
| Thickness | From 4 to 100mm |
|
Typical 5.0mm 10mm 15mm 20mm 25mm
|
|
| Other Special size please contact us for discussion | |
Features:
- Light
- Good rigidity
- Flat and straight
- Good at wind-proof and pressing-proof
- Fire-proof
- Easy to process and shape
-Good at weather-proof
- Good intensity
- Good at sound and heat insulation
- Good at shock-resistance
- Green building material
- Energy-saving and environmental protection
| Physical Property | ||
| Item | Unit | T=10mm |
| Weight | kg/m3 | kg/m3 |
| Thermal expansivety | 23x10-6 | |
| Heat conduction ratio | /ºC | 1.7 |
| Cimbustion | W/MºC | Flame Resist / Class B1 |
| Presssing-proof | 1.72 | |
| Pulling-proof strong modulo of the surface | Mpa | 20-50 |
| Bending protracting ratio | Gpa | 5% |
Application
Exterior wall, interior wall, cleanroom, ceiling, office cubicles, washroom cubicles, travel trailer marine vessels
interior decoration, interactive whiteboard, door and etc.
