Insulated Fireproof Aluminum Sandwich Panel Wall/Roof Panel for Workshop Building
Definition

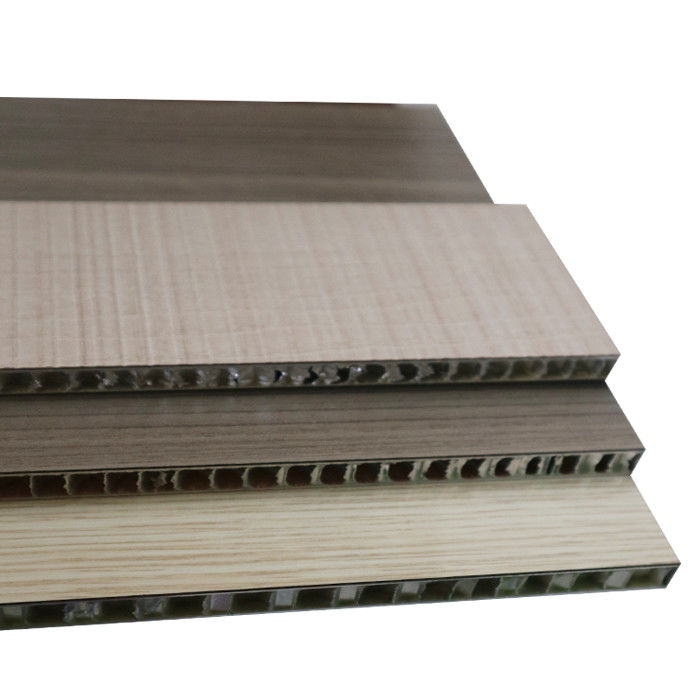

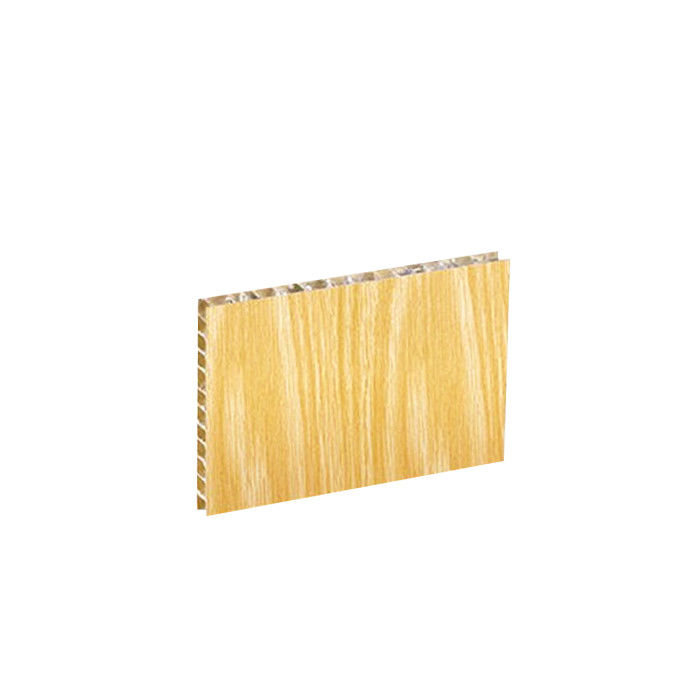

Aluminum Composite Panel is a sandwich panel with a core in aluminium honeycomb bonded to two skins of aluminium.
Its certified version finds application in various sectors: from railways to naval, from building construction to interiors. This panel can be ordered
with raw, primed or colored sheets. The colors are available in various RAL after having verified minimun order quantities and delivery times.
This panel can be edged, shaped, perforated. WDF, upon customer request, can offer perforate this panel in order to transform it into a vacuum table.
Structure
Aluminum Skin + Aluminum Honeycomb Core + Aluminum Skin
Size:
| Length | Upto 10m |
| Width | Upto 2200mm |
| Thickness | From 4 to 100mm |
|
Typical 5.0mm 10mm 15mm 20mm 25mm
|
|
| Other Special size please contact us for discussion | |
| Cutting to size | Milling | Drilling | Joining | Cut to Shape |
| Panel folding | Panel edging | Inserts | Painting | Veneering |
Features:
- Light
- Good rigidity
- Flat and straight
- Good at wind-proof and pressing-proof
- Fire-proof
- Easy to process and shape
-Good at weather-proof
- Good intensity
- Good at sound and heat insulation
- Good at shock-resistance
- Green building material
- Energy-saving and environmental protection
Packing and Loading:
| Packing Method | Loading Quantity for 3mm | Loading Quantity for 4mm |
| Wooden Pallet | 1500pcs | 1100pcs |
| In Bulk (nude packing) | 2000pcs | 1400pcs |
Application
Exterior wall, interior wall, cleanroom, ceiling, office cubicles, washroom cubicles, travel trailer marine vessels
interior decoration, interactive whiteboard, door and etc.
